Add a new building and improvement with 3D model

Discussion in 'Civ5 - Graphics modpacks' started by danrell, Oct 8, 2012.

  1. danrell

    danrell Warlord

    Joined:
    Jan 5, 2007
    Messages:
    291
    Location:
    Hong Kong
    Request by Ekmek



    Civ5 Test Improvement - Airfield
    Download
    --------------------------------------------------------------------------------------------------------------------------



    Civ5 Test Wonder - Temple of Heaven
    Download
    --------------------------------------------------------------------------------------------------------------------------
    I will try to write the tutorial to explain how to add the 3D model with my bad english... :(


  2. danrell

    danrell Warlord

    Joined:
    Jan 5, 2007
    Messages:
    291
    Location:
    Hong Kong
    Ok, I write the tutorial, please don't mind my bad english...

    Frist, you need some tools and some blender's skill, then download the Civ5 3DModel Edit Toolpacks and install in this order :

    01. Python 2.6.6
    02. PyFFI 2.1.9
    03. Blender 2.49b
    04. Blender NIF Scripts 2.5.7.12
    05. Blender Scripts PY Files
    06. Indie Stone Nexus Buddy 0.5a
    07. IndieStoneMaterialMaker
    08. NifSkope 1.0.22
    09. Gr2 Viewer 2.8.44.0
    10. Adobe Photoshop DDS Plugin / another edit DDS program

    *1-7 indispensable

    Civ5 3DModel Edit Toolpacks
    --- Part1 ---
    --- Part2 ---
    --- Part3 ---
    --- Part4 ---
    --- Part5 ---
    --- Part6 ---




    Attached Files:

  3. danrell

    danrell Warlord

    Joined:
    Jan 5, 2007
    Messages:
    291
    Location:
    Hong Kong
    Now download the "Civ5 Test Improvement - Airfield" and "Civ5 Test Wonder - Temple of Heaven", unpack and put it into :
    C:\Program Files (x86)\Steam\steamapps\common\sid meier's civilization v\Assets\DLC\Expansion\DLC\Expansion <------ add a new folder, must not be wrong

    you can open the game and test it (not in mod), I set the prereq tech is AGRICULTURE, so you can test it when in turn 1.

    1) 3D Model
    Let me edit it, go to
    C:\Program Files (x86)\Steam\steamapps\common\sid meier's civilization v\Assets\DLC\Expansion\DLC\Expansion\Test_Improvement\Airfield_Model
    there are 2 era and 3 state improvements, 6 models, you need understand what is HB, PL, it's the name used of the 3D model's states
    UnderConstruction=HB
    Constructed=n\a
    Pillaged=PL

    Use these for template, create\convert a new model to replace it, for the example, I used the Factory.nif in attach files.

    Open the Factory.nif with Nifskope, then export to .obj file

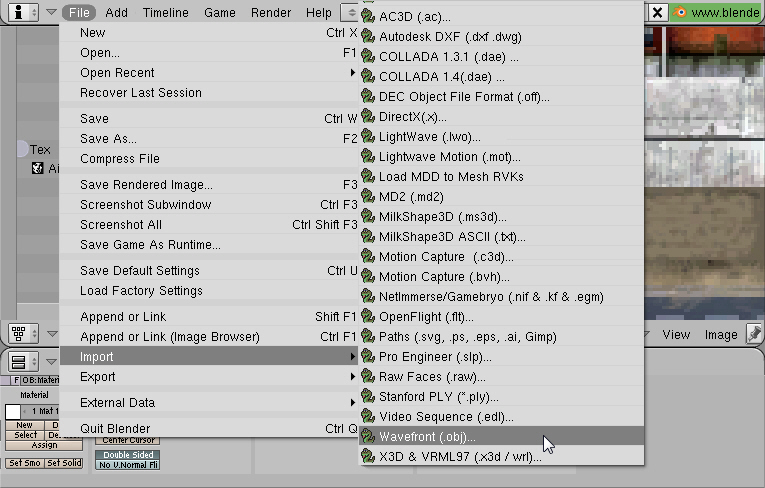

    open the Airfield_Era1.blend and import the .obj file

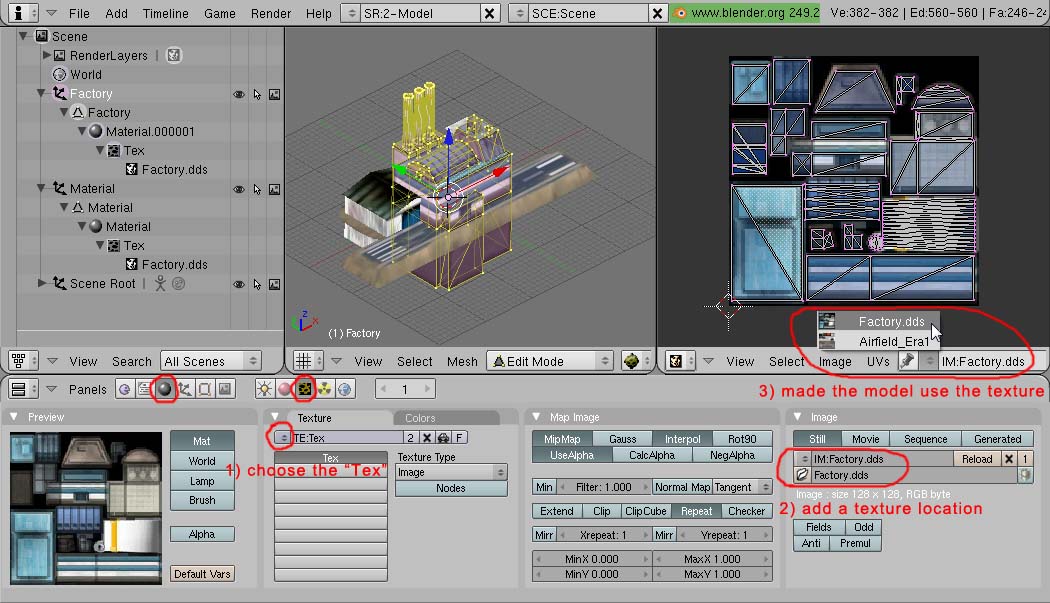

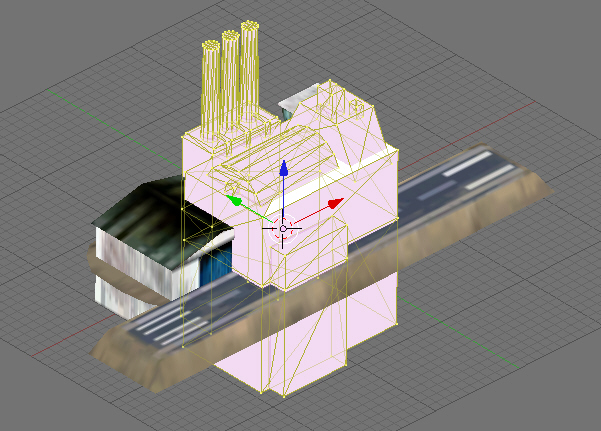

    make the proper position and scale it, like this

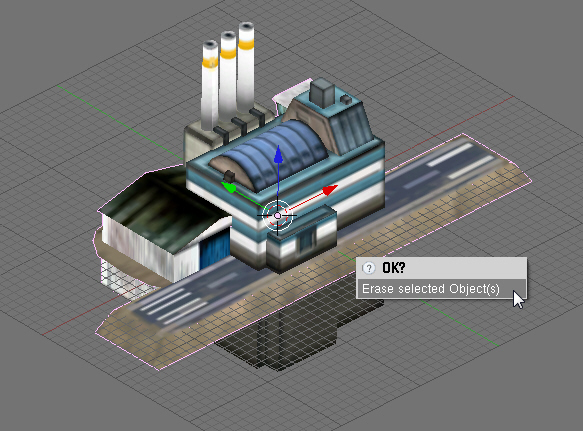

    add the texture


    then right click the airport and delete it

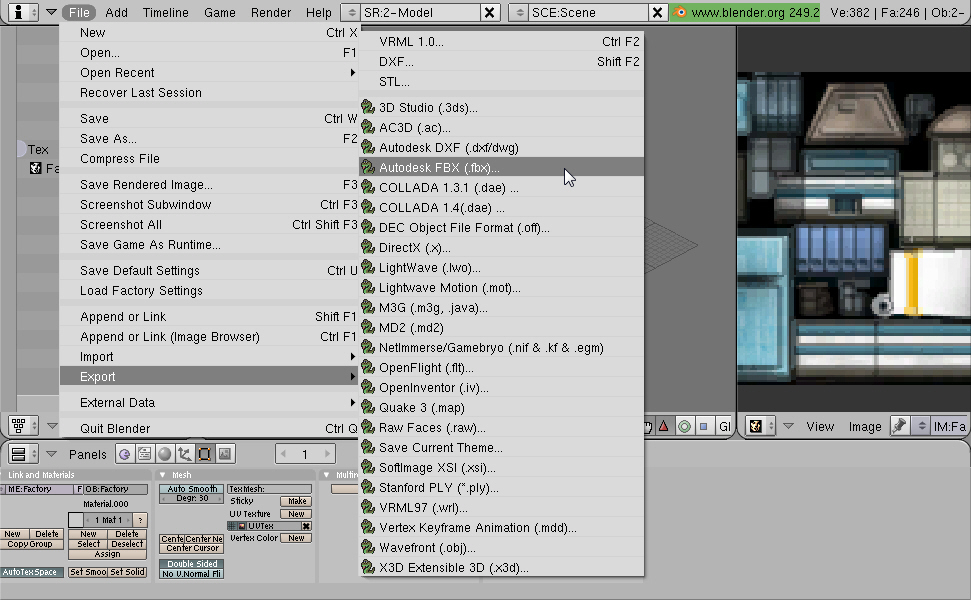

    export to .FBX

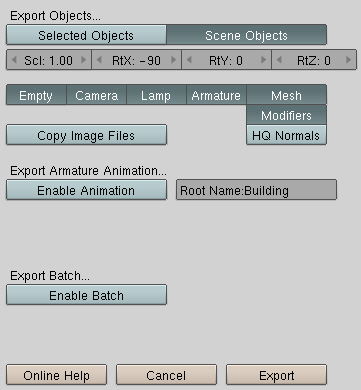

    export setting


    Open Indie Stone Nexus Buddy 0.5a and import the .FBX file

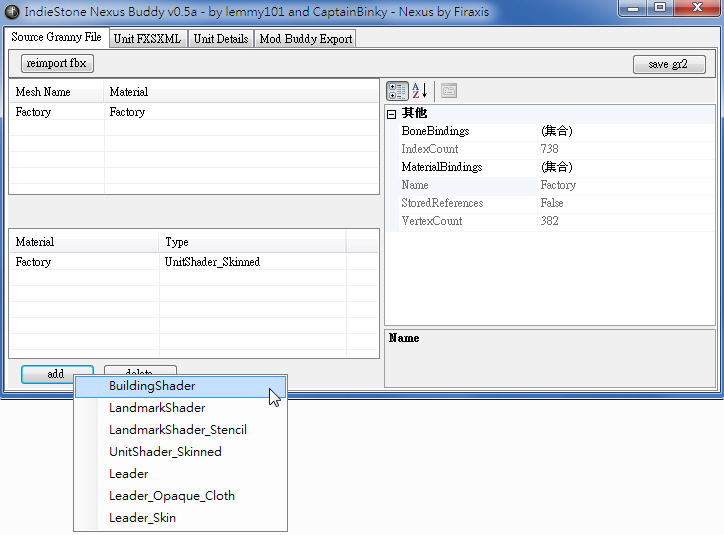

    press the add, chosse BuildingShader

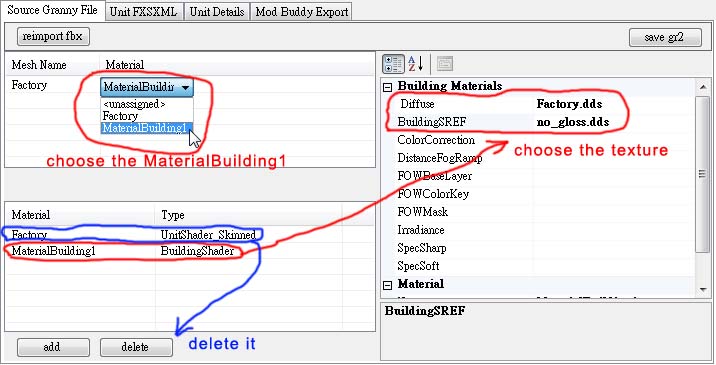

    following the next pic then press save gr2

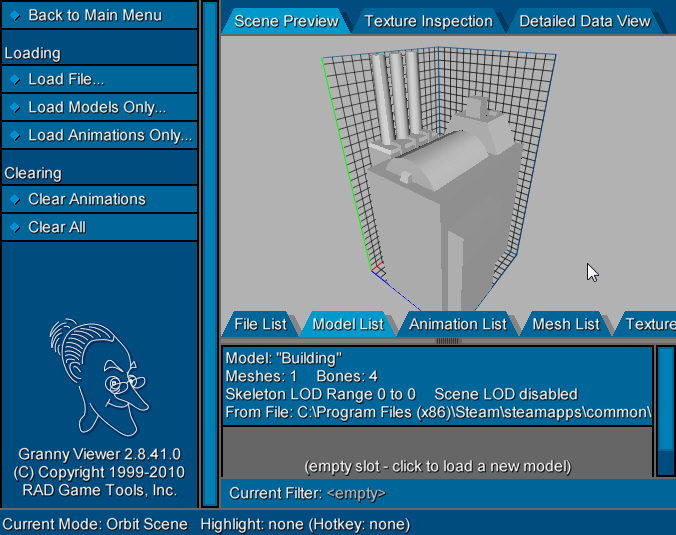

    change the name to "Factory_Era1" after save, we can open the Factory_Era1.gr2 with the gr2 viewer


    find the "Airfield_Era1.fxsxml" rename it to "Factory_Era1.fxsxml" then open it with notes
    and change this :
    <Mesh file="Airfield_Era1.gr2" source="Max" /> ---> Factory_Era1.gr2

    It's a simply and a quick way, you also can add the landmark, etc...
    Now you can create the Factory_HB, Factory_PL, Era1, Era2, Era3..... and different angles, different art types, different civ types... This easier than make a unit.
    I created 6 factories's model for next part, Era1_HB, Era1, Era1_PL, Era2_HB, Era2, Era2_PL.
    (The wonder's step is same of the improvement.)

    2) XML
    I modified 5 XML files for improvement \ 3 XML files for Wonder,
    you can use another way (SQL?) when you understand what I change.

    improvement changed :
    Civ5ArtDefines_Landmarks_Expansion.xml
    Civ5ArtDefines_LandmarkTypes_Expansion.xml
    CIV5Builds_Expansion.xml
    CIV5Improvements_Expansion.xml
    CIV5Units.xml

    Wonder changed :
    Civ5ArtDefines_Expansion_Wonders.xml
    CIVBuildingClasses_Expansion.xml
    CIV5Buildings_Expansion.xml

    Open the files and search "test" , you can see what I changed.
    In this case, you need change all "Airfield" to "Factory".

    Explain some xml, open my Civ5ArtDefines_Landmarks_Expansion.xml

    <LandmarkArtInfo>
    <ImprovementType>ART_DEF_IMPROVEMENT_AIRFIELD</ImprovementType>
    <ResourceType>ART_DEF_RESOURCE_ALL</ResourceType>
    <Era>Ancient</Era>controlled the Era
    <State>UnderConstruction</State>This controlled the States, 3 types and "any", so we can make 3 models to use this, but the wonder haven't this tag so I can't make the wonder have "under construction" states.
    <fScale>1.0</fScale>
    <FXSXML>Airfield_Era1_HB.fxsxml</FXSXML>This your 3D model name
    <LayoutHandler>SNAPSHOT</LayoutHandler>There will be appear different types if set "RANDOM" e.g. BARBARIAN_CAMP, you can make different angles, different art types to use that.
    <bTerrainContour>False</bTerrainContour>
    </LandmarkArtInfo>

    open my Civ5ArtDefines_Expansion_Wonders.xml

    <WonderArtInfo>
    <Type>TEMPLE OF HEAVEN</Type>
    <WonderArtState state="Any">
    <fScale>0.05</fScale>
    <Granny>Temple_Of_Heaven.fxsxml</Granny>
    </WonderArtState>
    </WonderArtInfo>
    It's very simply, only scale and the filename, I tried change the state="Any">, but nothing to change, so I think the wonder's state maybe controlled in 3D model...

    I don't know whether to be detailed enough, if someone known more, welcome to completion it, thank you :)
