[ModBuddy Extension] Vanilla Asset Browser

Discussion in 'Civ5 - Utility Programs' started by CommanderZ, Oct 3, 2010.

  1. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    About Vanilla Asset Browser

    This simple extension allows you to browse vanilla assets hierarchy without leaving ModBuddy. Text files will be opened directly in ModBuddy, images, sounds and other files will be opened in their associated programs.

    Advanced usage

    Opening files in external editor
    Simply hold SHIFT while opening and file from the Vanilla Assets :)
    You can change the editor in <ModBuddy folder>/MatejZabsky/ExternalEditorPath.txt

    Advanced search modes
    • Prefix search - add one space character before search query (has no effect on file content search).
    • Regular expression search - if you use any other character than letters, ".", "_" and " ", the search query will be interpreted as PCRE regular expression (for both file name and file content searches).

    Installation

    1) Download the attached archive and extract it
    2) Register ModBuddy as Visual Studio Isolated Shell
    3) Open the "vsix" file found in the archive
    4) Visual Studio Extension Installer pops up - click Install
    5) Once the installation is complete, close the window
    6) Restart ModBuddy (if it was running)
    7) Go to View->Other Windows->Vanilla Assets
    8) Find the CivilizationV.exe with the dialog box that pops up
    9) You should now see a floating window with root asset directories. Dock it somewhere and you are done :)

    Upgrading to newer version

    1) Download the attached archive and extract it
    2) Open the "vsix" file found in the archive
    3) Visual Studio Extension Installer pops up - click Install
    4) Once the installation is complete, close the window
    5) Restart ModBuddy (if it was running)

    Version History

    1.7 (17.10.2010)
    - fixed the VA window not opening (reported by VRBones)

    1.6 (13.10.2010)
    - fixed the VA window being confused with Solution Explorer (reported by JeBuS27)

    1.5 (12.10.2010)
    - added option to open files in external editor

    1.4 (7.10.2010)
    - added prefix and regex search options

    1.3 (5.10.2010)
    - instant search by file contents
    - search text box is now more responsive (no lag)

    1.3 (5.10.2010)
    - instant search by file contents
    - search text box is now more responsive (no lag)

    1.2 (5.10.2010)
    - fixed bug where the tree would be populated more than once after the window is closed and reopened (reported by damocles88)

    1.1 (4.10.2010)
    - instant search by file name
    - configuration file is now saved into correct directory
    - removed unnecessary message boxes
    - generally more polished

    1.0 (3.10.2010)
    - first version

    Planned Features

    - cache file content index onto hard drive so it doesn't have too be rebuild every time ModBuddy loads

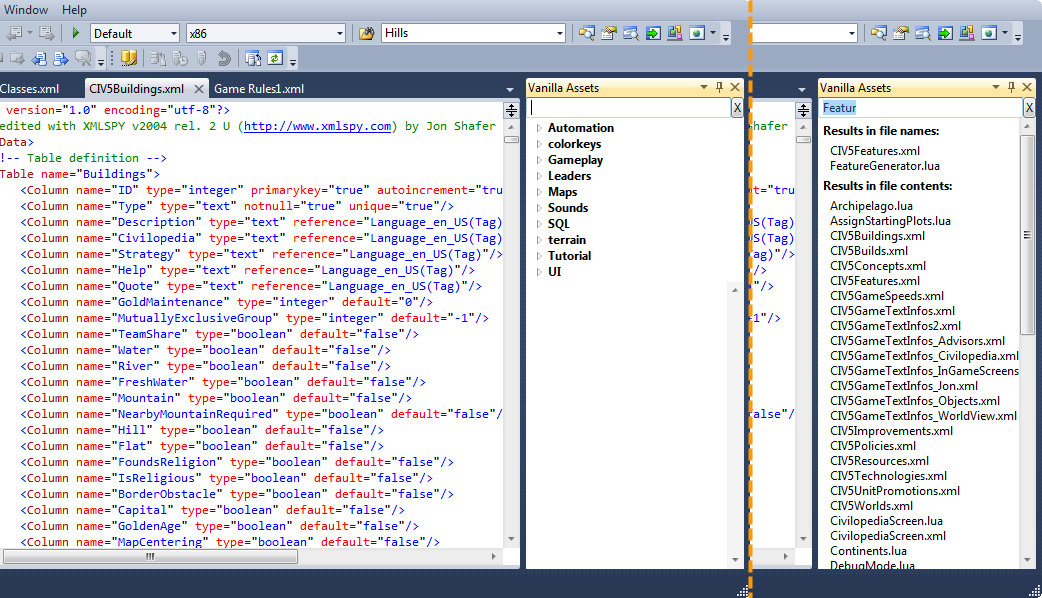

    Screenshot



    Source code

    I will post C# source code upon request.


    Attached Files:

  2. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    Update: Posted version 1.1!

    See the original post for screenshot and download.

  3. damocles88

    damocles88 Chieftain

    Joined:
    Dec 10, 2009
    Messages:
    42
    Very nice, thanks a bunch for this. Saves digging around in files or database managers to find what I need.

    but I have found one bug...

    For some reason the vanilla assets window is showing the same folders about 5 times. So I get one list of folders starting with Automation and ending with UI, but then another 4 or 5 more lists that immediately follow, all going from Automation to UI. It's a minor bug that doesn't affect how useful the tool is, but thought you might like to know :)

  4. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    Could you please post a screenshot, I can't replicate this bug.

    EDIT: Never mind, just found what causes it, will fix it ASAP.

  5. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    Fixed, thanks for reporting.


  6. damocles88

    damocles88 Chieftain

    Joined:
    Dec 10, 2009
    Messages:
    42
    Fast work!

  7. Shiggs713

    Shiggs713 Immortal

    Joined:
    Mar 11, 2007
    Messages:
    2,361
    Location:
    Indianapolis
    Wow, this looks like a fantastic utility tool. Great work!

    ps you should get the mods to move this to the proper sub forum so more people can find it ;)

  8. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    Which is the correct subforum? The closest match is "Civ5 - Utility Programs", but I'm not sure whether it really fits.

  9. Shiggs713

    Shiggs713 Immortal

    Joined:
    Mar 11, 2007
    Messages:
    2,361
    Location:
    Indianapolis
    yea that would be it. Its not a big deal though, great job once again.

  10. Szpilman

    Szpilman Void Co. Chairman

    Joined:
    Dec 2, 2006
    Messages:
    746
    Location:
    Cola
    Wow, CommanderZ, you're putting out great ModBuddy extensions, thanks a lot!

    A question: using the vanilla assets browser is it possible to accidentally alter their original value? Or are they browsed strictly read-only?

  11. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    The files are opened as normal files (writable). To be honest, I have no idea how to tell the Visual Studio to open ordinary writable file in read-only mode.

    I could can mark the file read-only (using the file system flag) and then open it, but it might break Steam updater (though that is not very likely, most file-manipulation functions in most languages don't pay very much attention the the flag). If the file is read-only, the file is opened in some sort of semi-writable mode - you can type into it, but a lock icon is shown near file name and a warning box pops up while saving the file (allowing you to overwrite the file).

    And thanks all for the positive replies!

  12. salaminizer

    salaminizer Colorado Internacional

    Joined:
    Aug 12, 2006
    Messages:
    221
    Location:
    Porto Alegre, Brasil
    when I run the vsix it says it haven't found a registered application, after I ran the .reg file and changed the .pkgdef file.

  13. Szpilman

    Szpilman Void Co. Chairman

    Joined:
    Dec 2, 2006
    Messages:
    746
    Location:
    Cola
    My concern is unknowingly hitting a key while browsing an Asset file. That's why I have made a copy of the Assets folder (which I keep in ModBuddy's project root folder). Would it be possible to point the extension to that location instead?

  14. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    Hmm, weird. Are you sure you have the ModBuddy correctly installed? Try to do the two steps again (verify you did them correctly). Also, check whether the extension is not already installed (Go to Tools->Extension manager->All).

    The installation instructions worked for me and for other people too, so I don't know what else could be wrong.

    Check "<ModBuddy directory>/MatejZabsky/ExecutablePath.txt". You can change the value to anything you want and the extension will try to load the directory. The only "genuineness" check is during the first startup (when you are asked for the CiV executable).

  15. salaminizer

    salaminizer Colorado Internacional

    Joined:
    Aug 12, 2006
    Messages:
    221
    Location:
    Porto Alegre, Brasil
    ok, running the ModBuddy exe directly from the folder (that is, not from Steam) made it work somehow :confused:

    thanks :goodjob:

  16. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    It is more likely you did something to fix the issue before you tried to run the ModBuddy directly ;) I usually run ModBuddy through the launcher and it works fine.

  17. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    Update time! The search by file contents is now in. It is not really "instant" (it takes a few moments for the results to pop up), but it is still much faster than using Windows Search :)

    The fast search has its price though: the ModBuddy now takes a ten or so more seconds to load (all the text Assets are being preloaded into memory).

    See the first post for download and a screenshot.

  18. Szpilman

    Szpilman Void Co. Chairman

    Joined:
    Dec 2, 2006
    Messages:
    746
    Location:
    Cola
    Do you mean like Windows Grep? That will be the most useful tool ever :)

    I was wondering: I actually have a copy of the root Tutorials folder (or something) inside my Assets copy, will it get indexed as well?

  19. CommanderZ

    CommanderZ Warlord

    Joined:
    Nov 24, 2007
    Messages:
    182
    Location:
    Prague, Czech. Rep.
    Could you please explain what you mean?

    The content search does simple string matching only (no wildcards or other stuff). I of course could use regexp matching instead, but that would slow down the search. Maybe...string matching would be used if there are no special chars (only letters) in the search query and regexp otherwise :)

    Sounds like an idea, but I'm not sure it would be that useful. I am certainly not fluent enough with regexps to use them in my everyday practice.

    Yes, any files you put into the Assets will be included in the tree and also in file name searches. The file content index however contains SQL, XML and LUA files only. I could add a few more extensions if you wish, the purpose of this is to prevent DDS and MP3 files from being indexed (only cca 800 of the 5000 files in the asset directory aree text files, the rest are mostly MP3s and DDSs...making like 99% of total Asset size).

  20. db0

    db0 Bane of Misoids

    Joined:
    Aug 31, 2010
    Messages:
    92
    Location:
    Somewhere far beyond...
    Hey there, thanks for this extension, very nice. Quick question (and I hope I'm not just being stupid) but how do I use the search in Vanilla Assets? Nevermind :)
